Max load capacity up to 300 kg (661 lbs) • on flat ground (0 – 3 degrees): 300 kg (661 lbs) • on slope (3 – 12 degrees): 180 kg (397 lbs)
Electric dump • Reduces workload when dumping soil and other materials on the ground that are too heavy to lift manually • The bucket can be tilted electrically up to 75º with a reference to the ground, and then the bucket can be tilted manually up to 110º • The electric dump is limited to use on a flat ground, therefore, the machine is equipped with a level gauge to check the leveling of the machine

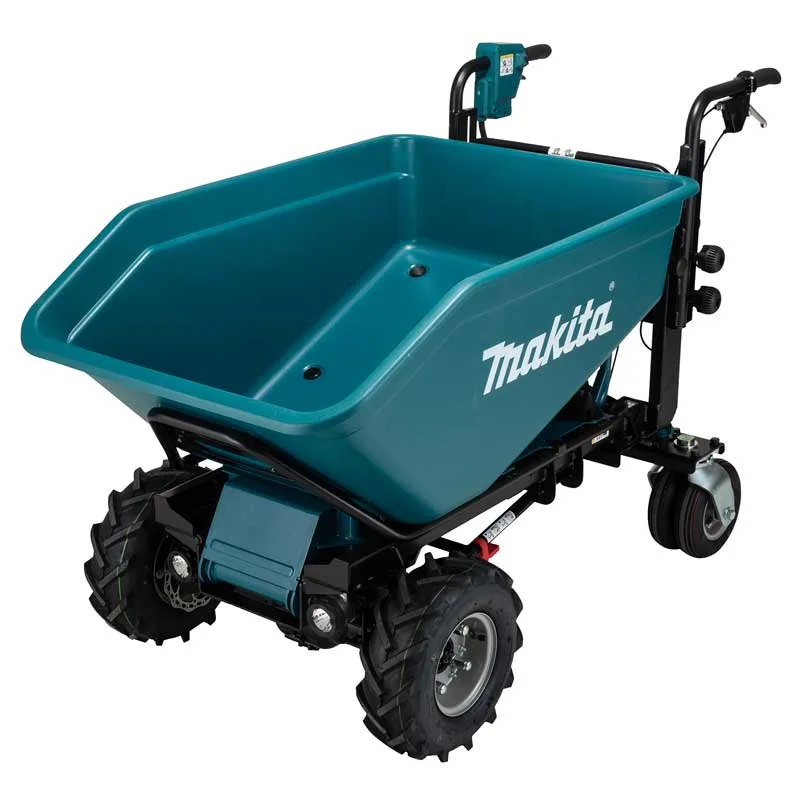

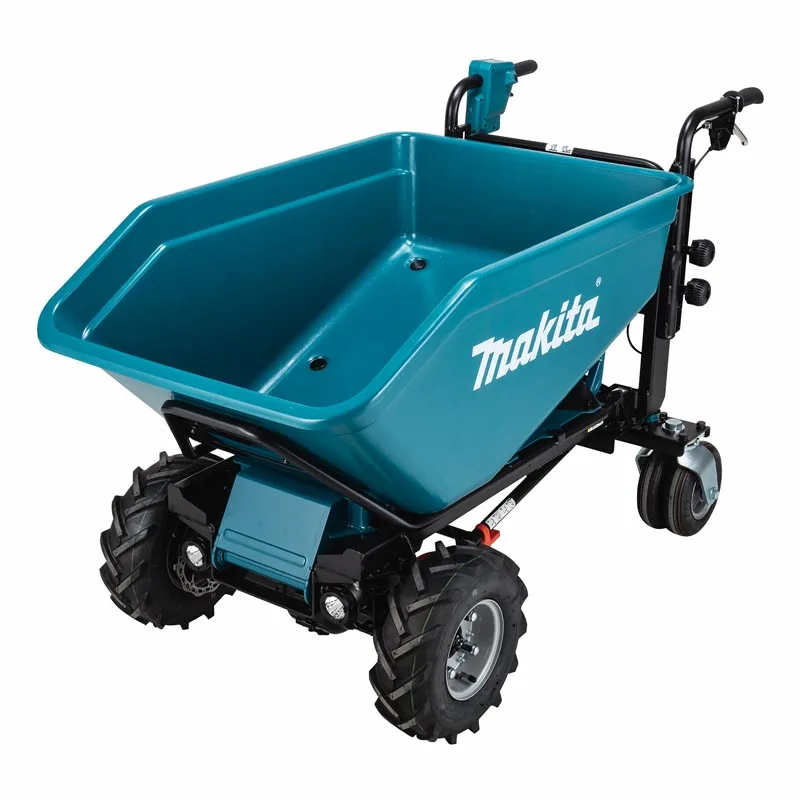

Dump bucket • Bucket capacity: – Heaped capacity ………….. 200 L – Full liquid capacity ………. 100 L • Rust-free plastic bucket accepts wet loads • Inside bottom and front faces are angled for easy dump operation
Traveling speed change • Selection of 3 Forward speeds and F/R rotation by push button • Stepless variable speed control by switch trigger in each range

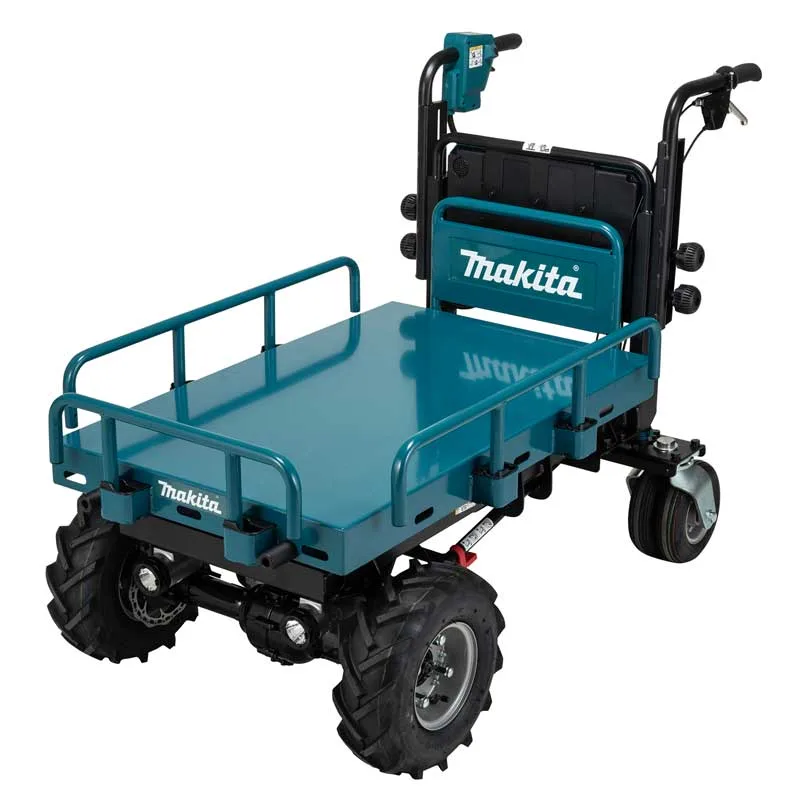

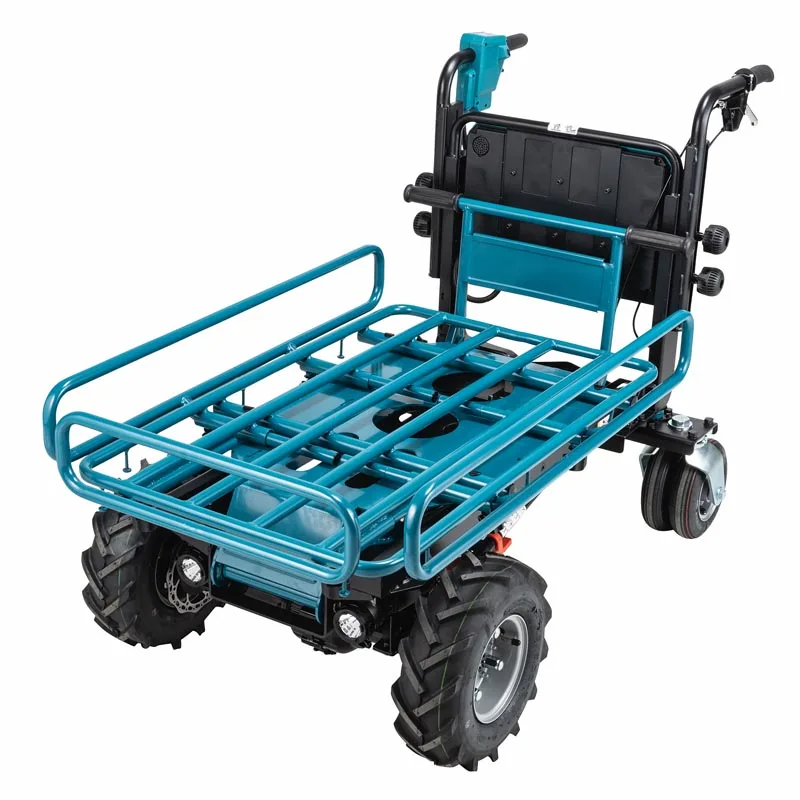

Dump bucket can be replaced with Carrier (optional accessory)
4-wheel barrow (with front-wheel drive system) for stable load-carrying even with heavy loads
XPT (eXtreme Protection Technology) / IPX4-compatible High water-resistance allows to operate the machine even if it is wet with water
